Technical specifications

Input: 220-240V AC 50 Hz 1.5 A
Charging voltage: Normal 14.4V/28.8V DC - Cold/AGM: 14.7/29.4V DC
Charging current: 10A max (12V lead)- 5A max (24V lead and LiFePO4).
Lead batteries: 12V/24V WET, GEL, AGM.
Capacity 12V Small Mode: 5Ah-18Ah
Capacity 12V Normal Mode: 4Ah-240Ah
Capacity 24V Normal Mode: 10Ah-120Ah
Lithium Batteries: 12.8V 4 cells LiFePO4 10-80Ah
Enclosure protection grade: IP65

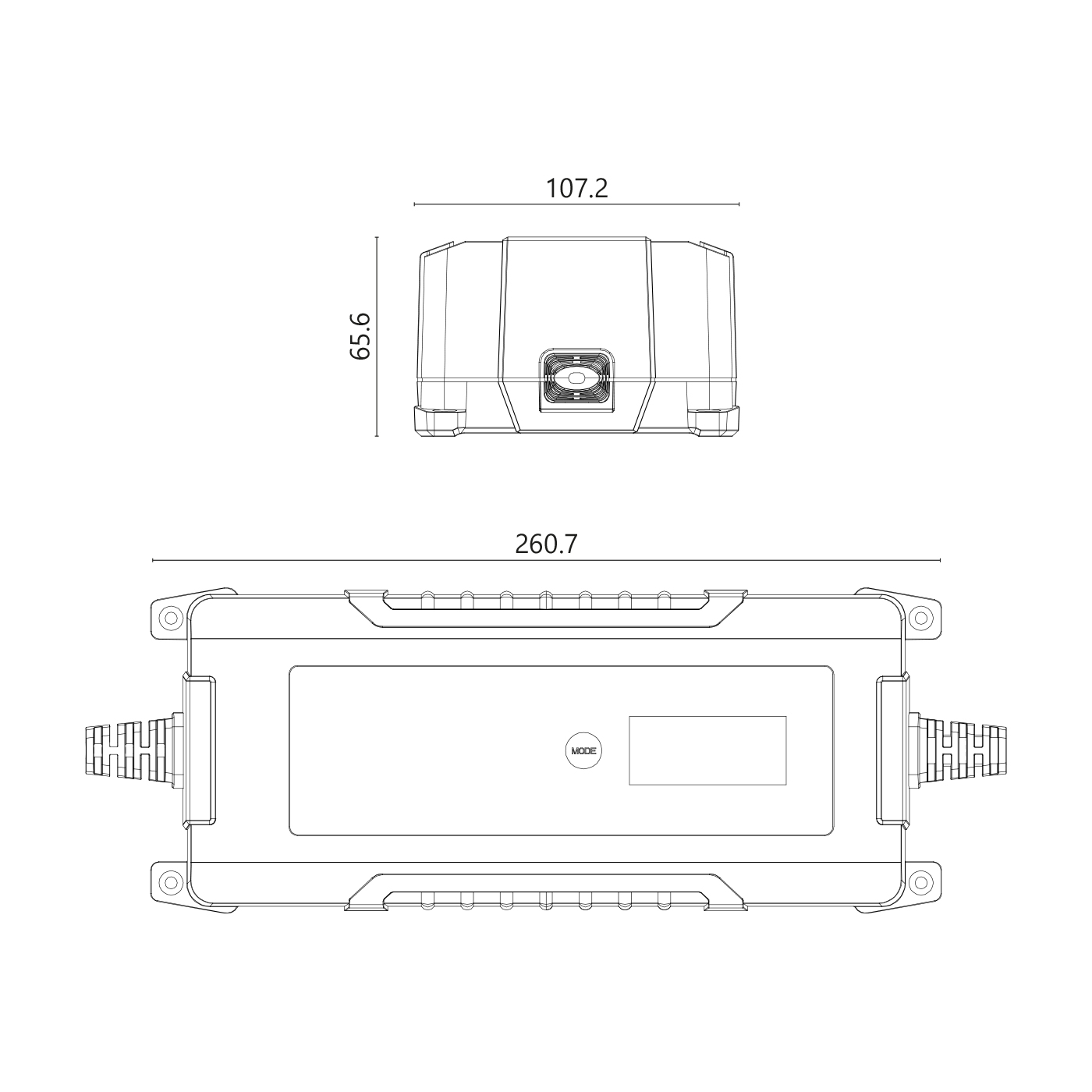

Dimensions: 260.7x107.2x65.6mm

Battery recovery function and selectable power supply

100% automatic from charging to maintenance. Equipped with fully interactive microcontroller. Automatically performs diagnosis, restoration, charging and maintenance for months. Automatic detection of battery voltage. Selectable power supply function. 10 charging modes.

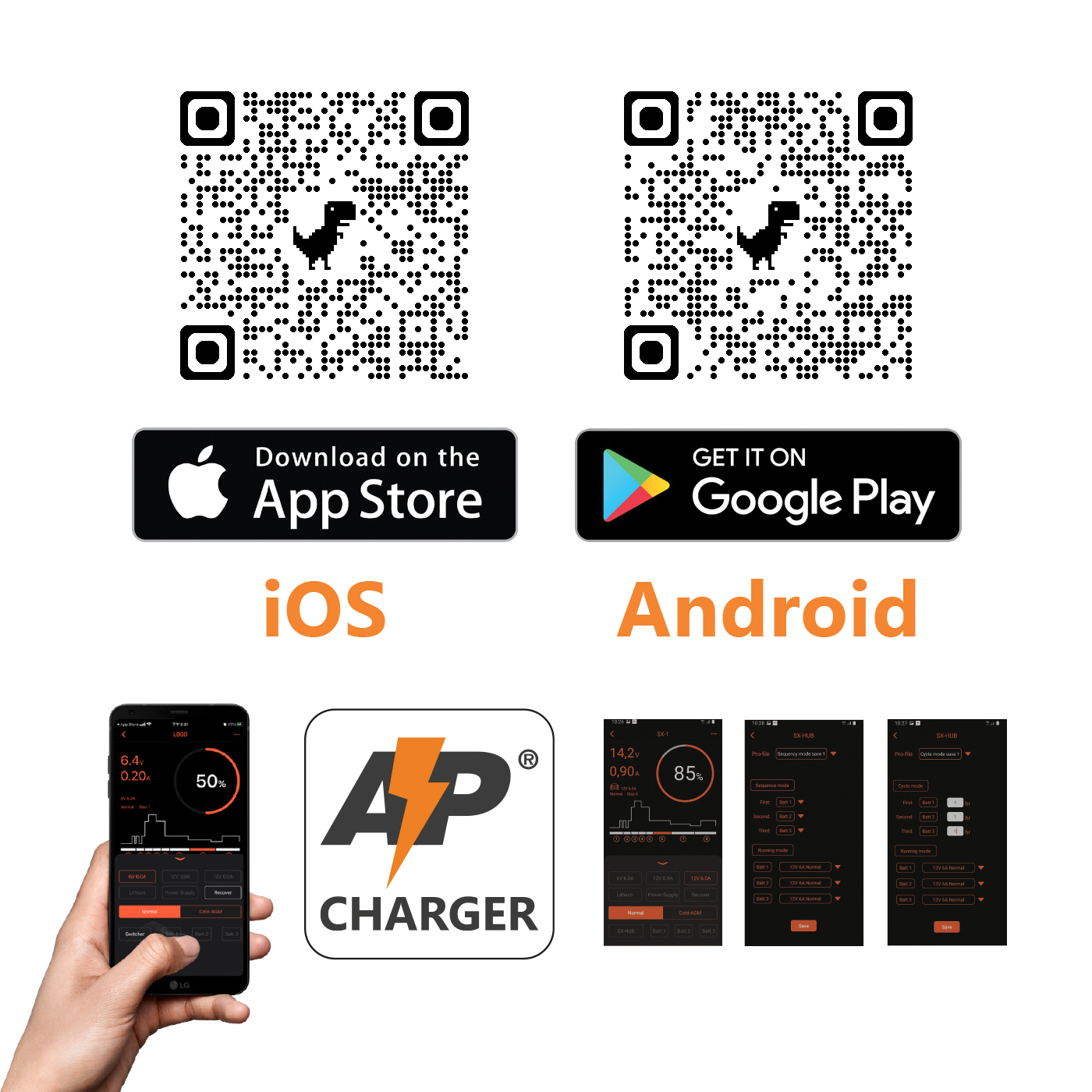

It can be managed via App on Apple iOS 8.0 or later systems and Android 4.4 or later systems.
To install the App, search for “AP charger 2.0” in the App Store or Google Play.
